Offers magnetic detection.
Magnetic sensors provide quick and
effective suspicious note detection as
counterfeit.
-

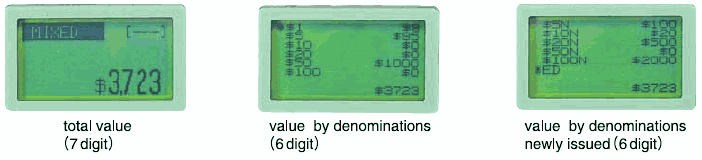

Shows a full-graphic display.
The large, easy-to-read LCD screen shows
total bill count and value, total
cumulative bill count and value, bill
count and value by denomination,
cumulative bill count and value by
denomination, as well as error codes and
messages.
-
Offers instant error detection.
When the Billcon D-551 encounters errors
such as skew, half note, short note,
over-batch, jams, etc., it automatically
notifies the user with an alarm and LCD
readout.
-
Provides automatic starting.
The D-551 is programmed to start
automatically when bills are placed in
the hopper. Or, it can be set to start
manually...
-
Interface.
Two communication ports for RS-232C can
be installed for connection to devices
such as personal computer, serial
printer and cash settlement system.
Choose from a variety of counting modes:
 |
Mixed Mode < Mixed Counting
> |
| |
Identifies and counts mixed
denomination bills, providing an
error-free summary of each
denomination and/or the total count.
|
 |
|
|
|
|
Single Mode < Different
Denomination Detection Counting > |
| |
Counts a specific denomination.
Bills of a different denomination
are fed to the pocket. |
 |
|
|
|
|
Separation Mode < Separate
Denomination Counting > |
| |
Counts a specific denomination. When
a bill of a different denomination
is detected, the machine temporarily
stops. When bills are removed from
the stacker, counting resumes.
|
 |
|
|
|
|
Single and Direction Mode <
Different Denomination
Detection/Specific Orientation
Counting > |
| |
Detects the denomination and
orientation of the first bill, and
counts only bills of the same
denomination and orientation. Other
bills are fed to the pocket. |
 |
|
|
|
|
Direction Mode < Specific
Orientation Counting > |
| |
Selects and counts bills in any of
four specified orientations
(face/back and left/right) without
interrupting totaling. Bills of a
different orientation are fed to the
pocket. Convenient for organizing
the orientation of bills. |
|
|
|
|
Free Mode < Piece Counting > |
Accurately count the number and
value of bills:
The D-551's Grand Total Function displays
the total number of bills and their total
value, as well as the total number and value
of bills by each denomination.
Bundle a set number of bills quickly
and easily:
The D-551 offers five preset batches 100,
50, 25, 20, 10. Any other batches from 1 to
999 can easily be set with the control
panel.
|
|
