Paper
Shredding Products
High Capacity
Shredders |
Destroyit 4605 - Comes
in Strip Cut & Cross Cut
Click on Picture
for Brochure Courtesy of MBM Corporation (New Window)
Click Here for Operator's Manual
(uses 921 Shred bags)
Click Here for a Movie Short of the Operation of
this machine |
small footprint | top loading feed hopper for bulky materials
such as crumpled paper from wastebaskets | special rotating paddles for positive feeding of bulky
materials into the cutting head | standard feed opening for flat paper with automatic start and
stop controlled by photo cell | fold-away feed table | main switch and emergency stop button | automatic reverse and power cut-off in case of overfeeding | soft-touch control keys for forward (continuous operation),
stop, and reverse | optical indicators show operational status | high quality, hardened steel cutting shafts are soft metal
resistant and can take CDs and hardbound documents | lifetime warranty on the cutting shafts | high powered 3 phase motor rated for continuous operation | durable gears enclosed in dust-proof housing | cabinet door opens from front | mobile shred bin for easy replacement of disposable shred bags | 61 gallon shred volume | automatic power cut-off when hopper or cabinet door is opened
or when shred bag is full | thermal switch prevents overheating | mounted on heavy duty casters
Feed opening: 18"
Maximum horsepower: 7 1/3
Motor output: 2.2 KW
Electrical requirements: 220 V, 3 phase
Dimensions (D x W x H): 30" x 29" x 67"
Shipping weight: 715 lbs. |
|
|
|
Destroyit 4107 - Comes
in Strip Cut & Cross Cut
Click on Picture
for Brochure Courtesy of MBM Corporation (New Window)
Click Here for Operator's Manual
(uses 922 Shred bags)
Click Here for a Movie Short of the Operation of
this machine |
Removable side tables provide large work space | easy-to-use control panel with push buttons for
forward, stop, and reverse | safety lock and key, main switch, and emergency
stop button | automatic reverse and power cut-off in case of
paper jam | optical indicators show operational status | high quality, hardened steel cutting shafts are
soft metal resistant and can take CDs, VHS tapes
(cross-cut only), and hardbound documents | lifetime warranty on the cutting shafts | convenient, centralized oiler for lubrication of
the cutting head | high powered 3 phase motor rated for continuous
operation | durable gears enclosed in dust-proof housing | large shred compartment with easy-access door
located in back of machine | pull-out bag frame mechanism mounted on rollers
for easy replacement of disposable shred bags | 79 gallon shred volume | automatic power cut-off when shred bag is full or
when cabinet door is opened | thermal switch prevents overheating | mounted on heavy duty casters
Feed opening: 16"
Maximum horsepower: 10 (strip-cut) / 8 (cross-cut)
Motor output: 4 KW (strip-cut) / 3 KW (cross-cut)
Electrical requirements: 220 V, 3 phase
Dimensions (D x W x H): 67" x 48 3/4" x 56 3/4"
Shipping weight: 952 lbs. |
|
|
|
Destroyit 5009 - Comes
in Cross Cut Only
Click on Picture
for Brochure Courtesy of MBM Corporation (New Window)
Click Here for Operator's Manual
(uses 923 or 924 Shred bags)
Click Here for a Movie Short of the Operation of
this machine |
Extra-large feed table
with conveyor belt and electronically
secured safety guard
| easy-to-use control panel with
push buttons for forward, stop, and
reverse | safety lock and key, main switch,
and emergency stop button | automatic reverse and re-feed in
case of paper jam | optical indicators show
operational status | two automatic speed modes:
“Power” for bulk feeding large
quantities of paper, and “Speed” for
high speed shredding of smaller amounts | high quality, hardened steel
cutting shafts are soft metal resistant
and can take CDs, VHS tapes, hardbound
documents, and 3-ring binders | lifetime warranty on the cutting
shafts | convenient, centralized oiler for
lubrication of the cutting head | dual 3 phase motors (24 maximum
horsepower) rated for continuous
operation | durable gears enclosed in
dust-proof housing | large shred compartment with
easy-access door located at rear of
machine | mobile shred cart with bag
mounting frame for easy replacement of
disposable shred bags | 79 gallon shred volume | automatic power cut-off when
shred bag is full or when cabinet door
is opened | thermal switch prevents
overheating | mounted on heavy duty casters | optional accessories: modular
conveyor belt system and additional
shred carts
Feed opening: 20"
Maximum horsepower: 24 Motor output: 9 KW
Electrical requirements: 220 V, 3 phase (50
amp. dedicated line required) Dimensions (D x W x H): 85 1/2" x 40 3/4" x
67 1/2"
(depth with conveyor system is 121")
Shipping weight: 3,080 lbs.
|
|
|
Destroyit 5009 Suggested Accessories |
|

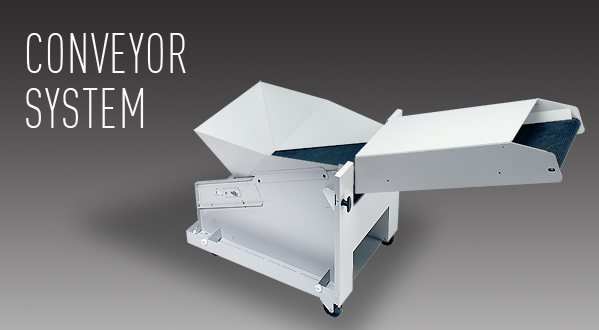

Converyor System
Optional accessory transports shredded material to
an external container | eliminates need to change
shred bags | easy to install—simply roll into place,
close door, and lock | electric belt drive is
controlled by the shredder electronics
| electrically secured locking system | mounted on
heavy-duty casters |
SHRED
COLLECTION CART FOR 5009
Additional shred collection carts allow
increased productivity and versatility in extreme
high volume environments.
Dimensions (D x W x H): 30 1/2" x 26" x 32 1/4"
Shipping weight: 110 lbs. |
|
|
923
Shred Bags (Old Style)
Quantity (per box):
50
Thickness: .004 mm
Capacity: 75 gallons
Dimensions (W x H): 42" x 56"
Shipping weight: 28 lbs
|
924
Shred Bags (New Style)
Quantity (per box):
50
Thickness: .004 mm
Capacity: 79 gallons
Dimensions (W x H): 40" x 58"
Shipping weight: 36 lbs.
|
DESTROYIT SPECIAL FORMULA
SHREDDER OIL
MBM shredder oil is a specially
blended, high cling, non-detergent oil formulated
for use in Destroyit®
shredders. It is recommended that shredding wheels
be oiled for every 30 minutes of operation for
cross-cut shredders and for every hour of operation
for strip-cut models.
(Available in Pint, Quart and
Gallon bottles)
|
921
Shred Bags
Quantity (per box):
100
Thickness: .002 mm
Capacity: 56 gallons
Dimensions (W x H): 47" x 52"
Shipping weight: 24 lbs.
|
922
Shred Bags
Quantity (per box):
100
Thickness: .002 mm
Capacity: 65 gallons
Dimensions (W x H): 44" x 64"
Shipping weight: 52 lbs.
|
