Click on Picture to view brochure

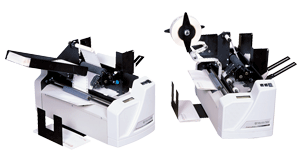

The Martin Yale EX5000 offers innovative electronic features and the ability to either tab or label in two separate passes.  Unit delivers up to 7,500 pieces of standard envelope size stock per hour.  Key benefits include extremely quiet operation and permanent counter.  On board diagnostics make troubleshooting the unit simple and easy to do.  Unit works with pin-fed tabs and labels only, all accessories for both modes of operation are included with the machine.


• Labels or tabs media at a fixed speed of up to 7,500 pieces per hr
• Handles pieces 4" to 15" wide and 3" to 15" long
• Accommodates one-across pin fed labels 1" to 4" wide and 7/8" to 5" high
• Accommodates pin fed tabs 7/8" to 15/16" in diameter
• User friendly controls with LCD display of sequential prompts to assist in set-up
• Batch counter for counting of material passed through unit
• Electron Label Control Adjustment allows accurate position of labels
• On Board Diagnostics for easy troubleshooting

Model: EX5000
Electrical: 115VAC, 60 Hz
Media Used: Pin-Fed Tabs and Labels Only
Unit Dimensions: 20" x 21" x 17"
Weight: 40 Lbs.

Click on Picture to view brochure

The Martin Yale EX5100 tabs documents of many varieties at a speed of up to 7,500 pieces per hour.  Unit works with either pin-fed or non pin-fed tabs.  This unit cannot run clear tabs.  Key features include extremely quiet operation, permanent batch counter and electronic adjustment of tab location for equal centering.  Built in diagnostic testing makes troubleshooting the machine simple.


• Seals mail pieces with an adhesive tab to create mailings that comply with U.S. postal requirements
• Reduces cost of mailings by eliminating the need for envelopes
• Accepts rolls of  5,000 tabs
• Precision control of tab location
• Handles media 5" to 12" wide and up to 1/8" thick
• Process media at up to 7,500 pieces per hour

• Accepts 15/16" and 31/32" round and 7/8" square tabs (pin-fed or non pin-fed)

Model EX5100 Specifications
Feed Speed: up to 7,500 pieces per hour
Width Capacity: 5" minimum to 12" maximum
Thickness Capacity: 1/8"
Tab Roll Capacity: 5,000-tab roll
Tab Size: 15/16" or 31/32" round or 7/8" square, pin-fed or non pin-fed
Electrical: 115V 60Hz (220V 50Hz avail.) UL Listed
Overall Size: 20" x 21" x 17"
Shipping Weight: 26 lbs.
